Vanquish H10 Optic Kit

Beschrijving

Vanquish H10 Optic Kit

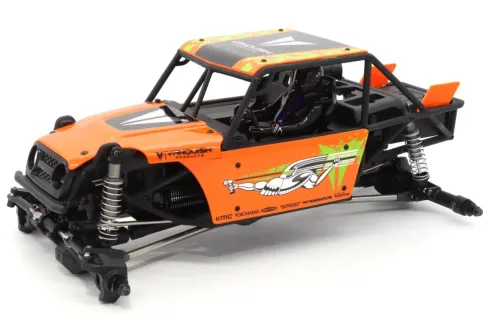

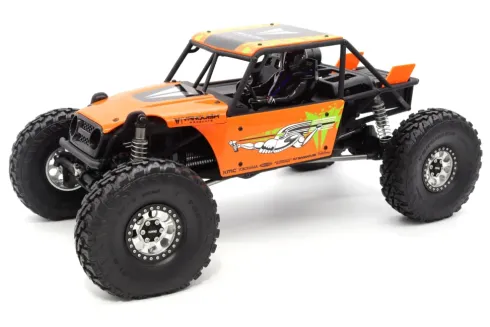

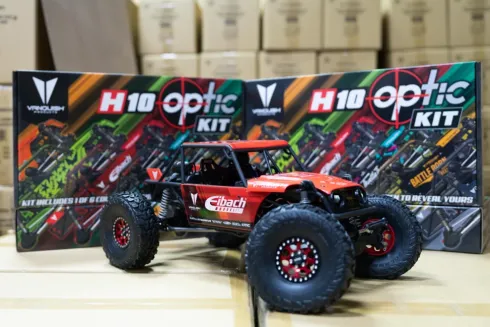

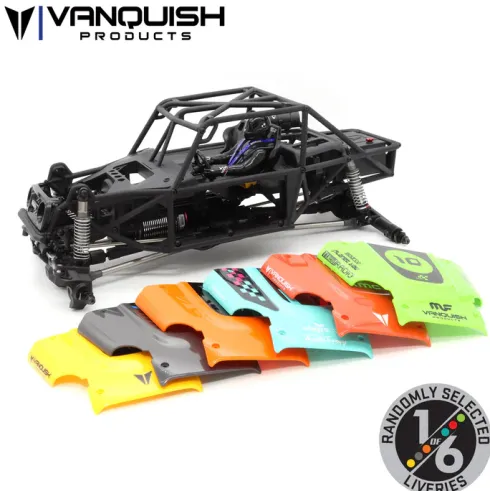

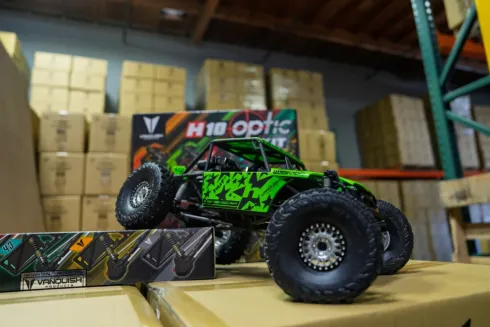

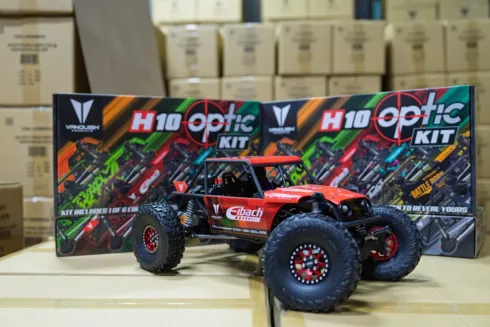

The H10 Optic kit is packaged and shipped with a color and graphic package that is selected at random. You do not get to select the version you receive. The box has no indication as to what option is included inside. Open your kit to reveal yours! Some images show wheels and tires installed for illustration purposes only, the H10 Optic Kit does not include wheels, tires, and electronics. See disclaimer at bottom.

The H10 Optic Trail Buggy was developed from the ground up as a purpose built ultimate trail truck. Styled after buggies that are designed to conquer difficult trails in all conditions. The H10 axles feature an increased width over the F10 axles and incorporate a scale hydraulic ram style steering. The servo position is hidden behind the axle and tucks into the chassis during the suspension cycle, preserving the scale look while providing optimal performance.A 13.25” wheelbase and increased track width offer a new level of stability and capability.

The proven VFD transmission comes equipped with a Machined Motor Plate, Standoffs, and Machined Bearing Plates. The VFD transmission low motor placement provides the H10 chassis a balanced and predictable driving dynamic. The innovations don’t stop there, the H10 Front axle has an integrated Hydro style ram steering system that provides a direct and protected link between the front tires and hides the servo low behind the rear axle to enhance the scale appearance. The Front and Rear H10 axles are exclusive to the H10 Trail Buggy platform with a 4-Link front and rear suspension and 8.11” hex width providing more stability.

The Optic body design is made from durable injection molded ABS commonly referred to as a “Hard Body” giving the H10 Optic a truly scale driving experience of a rugged and solid Trail Buggy with rigid body panels. Beneath the Optic body panels is a highly detailed ABS interior tray and 3D driver comfortably seated in Sparco EVO L QRT racing seat and decked out in a full Sparco competition racing suit, RF-5W helmet, and Land+ gloves. The access to your battery compartments couldn’t be easier with a single pin and latch system holding each side panel on to gain quick access on the trail.

SPECS

1/10th Scale

Axle Ratio 3.75:1

Pinion 13T 32P

Spur 56T 32P

Overall Width Hex to Hex – 206mm (8.11”)

Wheelbase – 337mm (13.26”)

Overall Height (w/4.75″ Tires) – 198mm (7.80”)

Overall Front Ratio 41.3:1

Overall Rear Ratio 44.0:1

Final Overdrive 6%

Battery Compartment Size: 93mm x 36mm x 42mm

REQUIRED ITEMS

ESC

540 Motor

Servo

Radio and Receiver

2-3S LiPo Battery (Compartment Size: 93MM X 36MM X 42MM)

Battery Charger

1.9 Wheels with SLW Hubs (Recommended)

4.75″ Tall 1.9 Tires (Recommended)
