SkyRC B6 Neo DC charger (200W)

Beschrijving

SkyRC B6 Neo DC charger (200W)

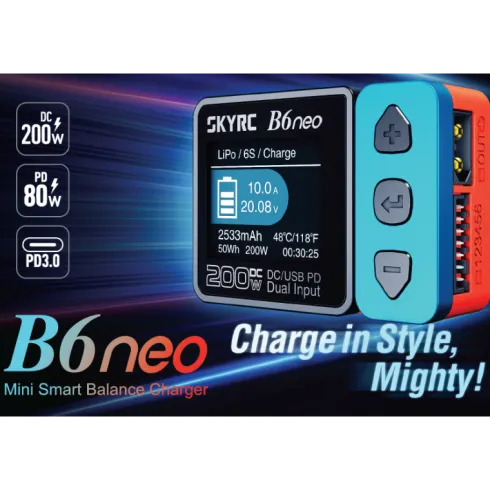

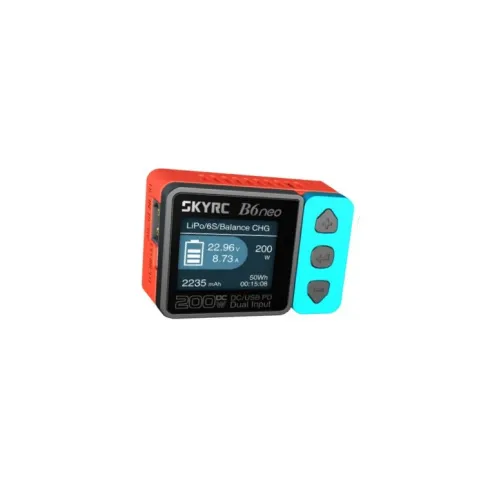

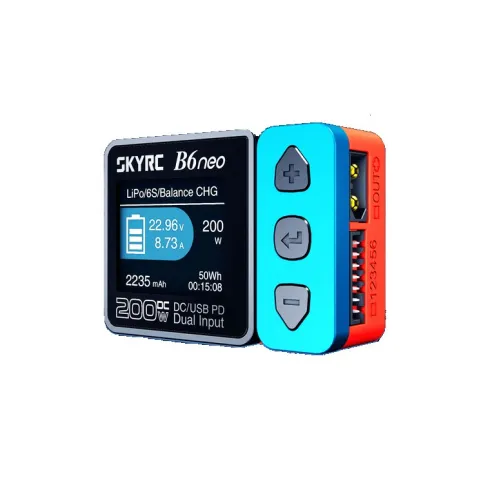

SkyRC’s legendary iMax B6 charger was an iconic charger back in 2006, and now SkyRC is proud to introduce the next-generation B6neo. Almost 1/4 the size of its predecessor, smaller than a credit card, B6neo still packs a powerful punch. Unlike the rugged aluminium case of the B6, the B6neo features stunning color schemes in sleek plastic cases. When powered by DC, he can charge up to an impressive 200W, while it can handle up to 80W with USB PD input. This is a significant improvement over the B6, wich can only charge up to 50W on DC and does not support PD input.

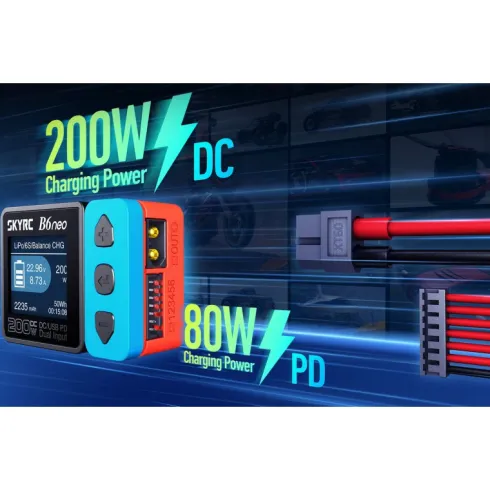

XT60 & trendy PD input

The B6neo features an XT60 interface as its DC input and a de-facto trendy type-C PD input interface, ensuring greater flexibility and convenience in charging your RC batteries

Discharging multiplied by balance port

The built-in balance port enables B6neo to discharge faster, allowing it to discharge at up to 24W when used in conjunction with the main port. In contrast, the discharge rate when using the main port alone is limited to just 10W

Versatile 2in 1 check batteries easily

When the balance port is connected, B6neo is a verstile battery checker capable of mesuring cell voltage and the balance state of LiPo, LiHV, LiFe and Lilon battery. The overall voltage and individual cell’s voltage will be displayed on the fly to help tell wether the battery is charged or discharged and wether it requires balancing. It will work as a safeguard for batteries as for example LiPo battery is renowed for their high energy density and lightweight properties. Proper care and monitoring are crucial to ensure their safety and longevity.

Charging but also can act as a digital power supply

After clicks on the menu, B6neo is ready for your application, offering and optimal voltage of 5-27V with 0.1V increment, adjustable 1-10A current.

Short circuit, overload and reverse polarity protection are all included

Rectifier circuit effiency multiplied

The B6neo uses a proprietary rectifier circuit to efficiently convert DC into safe D/C power for battery charging. And its ontboard MCU precisley controls the charging to minimize power loss to create an incredibly compact form factor.

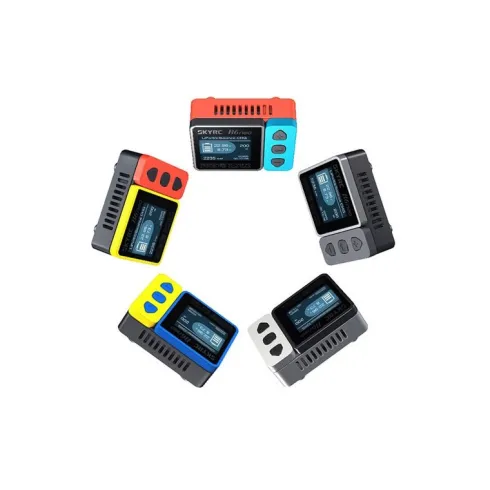

Color X easy on the eyes

Discover a new colorX interface introduced by B6neo based on simple and textured visuals. The tailor-designed light cyan and green color scheme are for RC charging, it helps you focus on the setting.

The Web2.0 responsive menu and well-desiged icons make the operation more suitable for players accustomed to operating smartphones.

• DC / USB PD dual input
• DC output function
• Stunning color combination
• A maximum output of 200 W
• Pocket size, portable mini charger
• Voltage measurement without power on

PD3.0/QC: 12.0-20.0 v

Input current: DC: 12 A

PD: 5 A

Max. output power: DC: 200 W

PD: 80 W

Charge current: 0.2 A-10.0 A Discharge current: Current: 0.1 A-2 A

Power: 10 W (+-10%)

Balance current: LiPo/LiFe/LiIon/LiHV: Max. 1500mA Size: 70 x 50 x 32 mm Weight: 82 g
