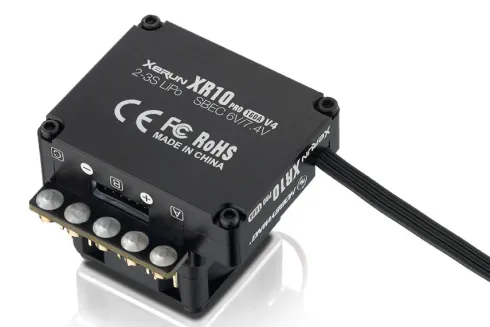

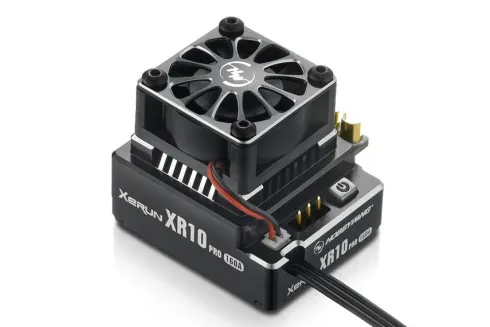

Hobbywing Xerun XR10 PRO V4 Speed Control – Black

Beschrijving

Hobbywing Xerun XR10 PRO V4 Speed Control – Black

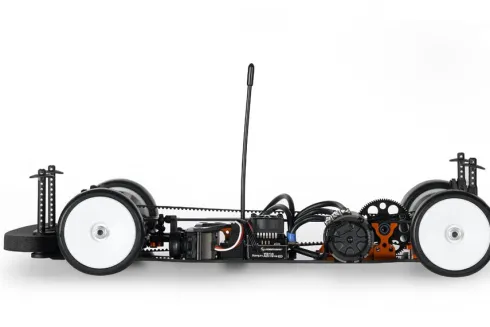

Reliable hardware combined with intelligent software (containing 10 common select-to-use profiles) creates an ideal power solution to 1/10th scale top touring car, Pan car and buggy racing.

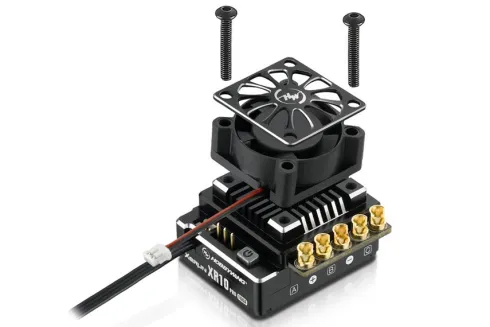

The aluminum casing and reticular heat sink combined with the HOBBYWING patented copper heat-conductive plates which are attached to the MOSFET board allows the internal heat to be quickly transferred to the heat sink for dissipation. With the high-performing detachable cooling fan, a highly reliable heat transfer system for maximum cooling is accomplished.

The XR10 Pro ESC features an electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design. The built-in switch mode BEC with a maximum output of 8A and voltage adjustable between 6V and 7.4V allows the user to use various high voltage servos.

This ESC features the data-logging function which can record the maximum ESC/motor temperature, RPM and etc. in real time and allows the user to analyze the recorded data via a the LCD program box or WiFi module after each use.

HobbyWing XeRun XR10 PRO Features:
High Power Output
Special Design for Top Racing
Programming / Upgrading / Data reading wirelessly
Adjustable Throttle & Brake PWM Frequencies
Efficient Heat Dissipating System
High current/voltage BEC
Separate Programming/Fan Port
Advanced and Secure Electronic Switch
Innovative data-logging Function

Spec Check:
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: No
Cont./Peak Current: 160A/1200A
Input: 2-3S LiPo/4-9 Cell NiMH
BEC Output: Swich Mode:6V/7.4V,4A
Input Wires: Black-12AWG-200mm*2
Output Wires: Black-12AWG-200mm*3
Input Connectors: No
Output Connectors: No
Fan Size: 25.0×25.0×10.0mm
Fan Voltage Range: 5-7.4V
WiFi Module: Supported
Size: 37.5×30.9×31.6mm(w/Fan & Fan Shroud)
Weight: 95g (w/ Wires)
