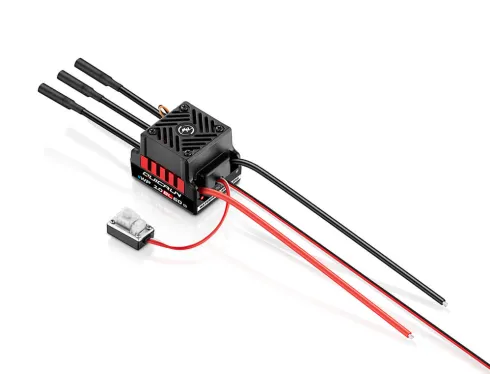

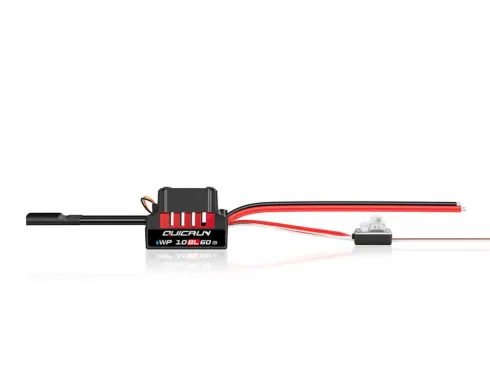

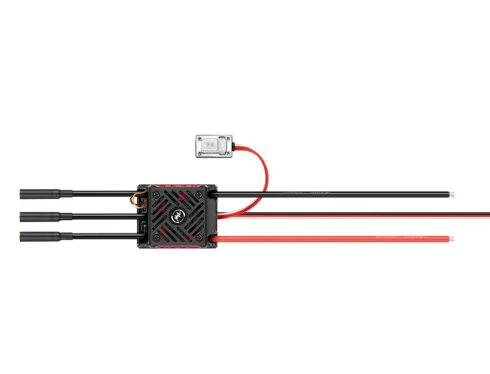

Hobbywing Quicrun WP 10BL60 G2 Brushless Sensorless ESC (60A)

Beschrijving

Hobbywing Quicrun WP 10BL60 G2 Brushless Sensorless ESC (60A)

Specifications

Scale:1/10th
Brushed/Brushless:Brushless
Sensored/Sensorless:Sensorless
Waterproof:Yes
Cont./Peak Current:60A/360A
Input Voltage:2-3S Lipo
BEC BEC Output:Switch Mode 6V @3A
Input Wires:Black-14AWG-150mm*1 Red-14AWG-150mm*1
Output Wires:Black-14AWG-60mm*3
Input Connectors:No
Output Connectors:4.0MM Gold (female)
Fan Size:30.0×30.0×10.0mm
Fan Voltage Range:6V
Fan Powered by:BEC
ESC Programing via:SET Button on ESC
LED Program Box:Supported
LCD G2 Program Box:Supported
LCD PRO:Supported
OTA Programmer:Not Supported
Program Port:Shared with fan port
Data Recording Extreme value:Not Supported
Real-time Data:Not Supported
Historical Data (Graph):Not Supported
Firmware Upgrade:Not Supported
Size:46*36.5*34.3mm
Weight:82.6g (Included wires&connectors)
Motors:Sensorless / Sensored Brushless Motor (only in sensorless mode)
Vehicles:1/10th On-road,Buggy,Short course truck
KV Rating/T Count:2S LiPo:KV≤6000;3S LiPo:KV≤3500(3652/3660 size motor)
