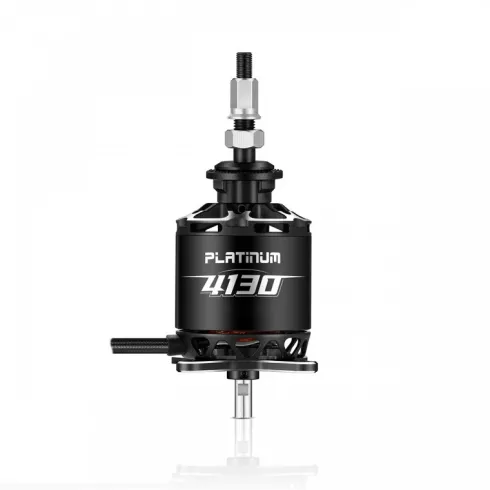

Hobbywing Platinum Motor 50×57 6mm 4130SL 230kV 12s Lipo (RC vliegtuigen)

Specifications

Motor Size:Φ49.5 *82.3mm
Stator Size:Φ40.6*30mm
Stator Process:High standard silicon steel sheet,180? high temperature resistance paint-coa
Enamelled Wire:200?
Props Mounting Dimensions:Φ15mm-3*M3
Motor Mounting Dimensions:Φ30mm-4*M4
Slot & Pole:12N14P
Dynamic Balance:≤10mg
Bearing:696ZZ
Motor Axle Diameter:Φ6mm
Isolation Test:500V AC high voltage resistance test
KV:230
Battery (LiPo):LiPo-12S
No-load Current:1.4A/44.4V
Maximum Current (Non-hermetic Ambient Temperature ≤ 25?:60.4A/1min2s
Max Power:2678W/1min2s
Max Thrust:9.06kg
Resistance:43mΩ
Wire Size:Enamelled Wire Output
Wire Length:90mm
Weight (With Wire):412g
Recommended ESC:PLATINUM 130A V4, PLATINUM 180A V5
Recommended Propeller:12S:16X6E,16X8E,17X6E,17X8E
