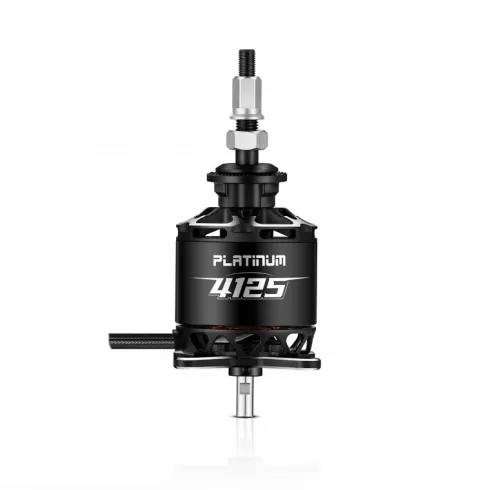

Hobbywing Platinum Motor 50×52 6mm 4125SL 250kV 12s Lipo(RC vliegtuigen)

Beschrijving

Hobbywing Platinum Motor 50×52 6mm 4125SL 250kV 12s Lipo (RC vliegtuigen)

Specifications

Motor Size:Φ49.5 *77.3mm
Stator Size:Φ40.6*25mm
Stator Process:High standard silicon steel sheet,180? high temperature resistance paint-coat
Enamelled Wire:200?
Props Mounting Dimensions:Φ15mm-3*M3
Motor Mounting Dimensions:Φ30mm-4*M4
Slot & Pole:12N14P
Dynamic Balance:≤10mg
Bearing:696ZZ
Motor Axle Diameter:Φ6mm
Isolation Test:500V AC high voltage resistance test
KV:250
Battery (LiPo):LiPo-12S
No-load Current:1.5A/44.4V
Maximum Current (Non-hermetic Ambient Temperature ≤ 25?:60.4A/49s
Max Power:2681W/49s
Max Thrust:8.25kg
Resistance:47mΩ
Wire Size:Enamelled Wire Output
Wire Length:90mm
Weight (With Wire):363g
Recommended ESC:PLATINUM 130A V4, PLATINUM 180A V5
Recommended Propeller:12S:15X6E,15X8E, 16X6E,16X8E
