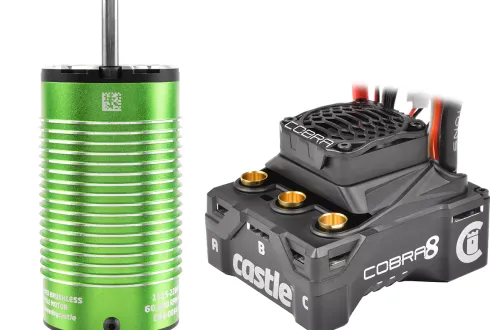

Castle Creations – COBRA-8 – Sensored-Sensorless Car ESC Car ESC – 2-6S – w/ 1515-2200KV Sensored Motor – 1/8 MT – 2-6S

Beschrijving

Castle Creations – COBRA-8 – Sensored-Sensorless Car ESC Car ESC – 2-6S – w/ 1515-2200KV Sensored Motor – 1/8 MT – 2-6S

Cobra 8 Key Features:

• 32-Bit Processing power for smoother motor control and improved response time.

• Improved thermal performance with CRYO-DRIVE™ technology.

• Enhanced Data Logging includes:

o Double the maximum sample frequency of older generations.

o 8x increased logging time of older generations.

o Data point for ESC electrical motor timing.

o Data point for acceleration via onboard accelerometer.

o Looping feature prevents interruptions in data log recording.

• Additional tuning features include:

o Improved braking adjustability

o Separate brake and reverse curves

o Highly adjustable internal BEC. (5.0V – 8.0V adjustable in 0.1V increments)

• Auxiliary wire functionality for “on-the-fly” adjustments using transmitter.

• Sensored Only, Brushed and SmartSense™ Running Modes

• Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)

• Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff.

• ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer.

• Mounting holes located in bottom of aluminum case for installation into vehicle.

• The COBRA 8 is proudly designed and manufactured in Olathe, Kansas USA and backed by the Castle Creations one-year warranty.

Cobra 8 Technical Specifications:

Input Voltage ESC: MIN: 2s LiPo, MAX: 6sLiPo 25.2V

Size: 2.36” x 2.04” x 1.69”

Weight: 165.6 g / 5.84 oz

BEC Voltage: 5.0V – 8.0V adjustable in 0.1V increments; (8A Peak); default 5.5V

Wire and Connectors: 6.5mm female bullets; matching 6.5mm male bullets required.

Running Modes: SmartSense™ Brushless, Sensored Only, Brushed

Cooling Fan: Yes, temperature controlled

Items Needed for Operation: A high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.

Product Use Statements: Remove cooling fan prior to driving in wet conditions, it is not waterproof.

Application Guidelines: For 1:8th scale vehicles weighing up to 15lbs. Not intended for drag racing applications.

Cobra 8 Purchase Includes: Cobra 8 ESC with 300mm direct connect sensor wire, Cobra Decals, Castle Link V4 USB Adapter, Cobra Quick Start Guide
